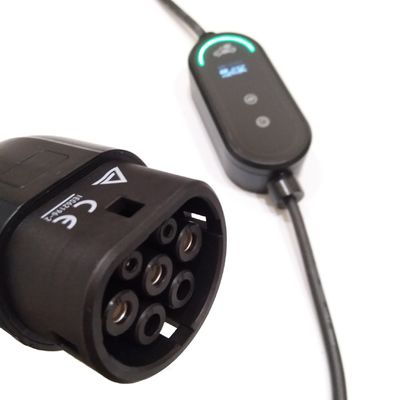

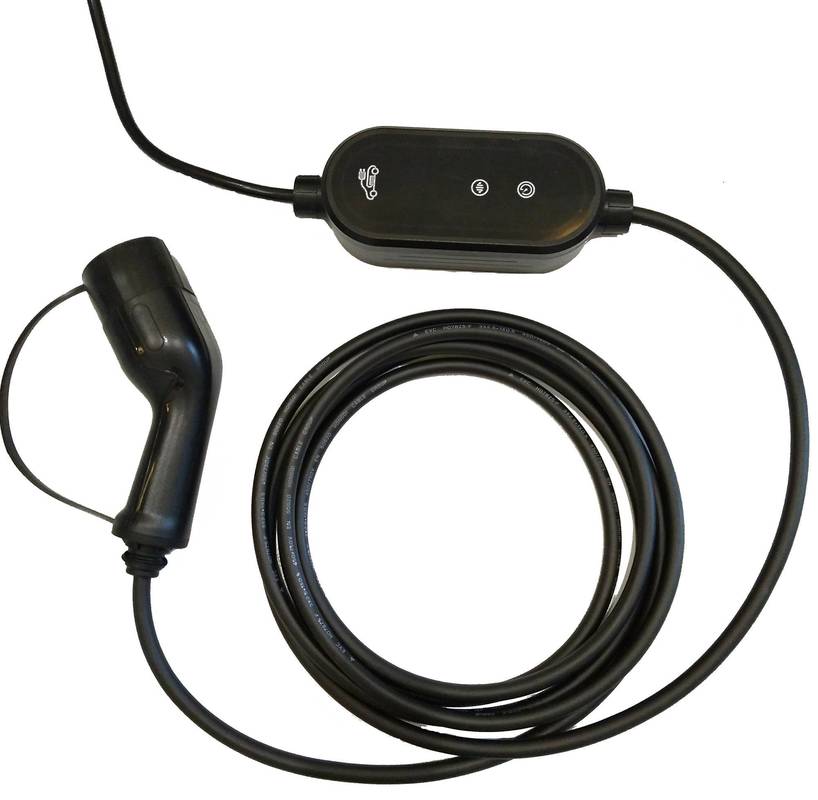

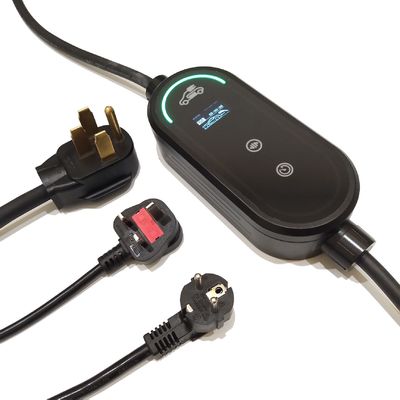

16A IP67 Portable EV Charger 3.7kW 110V/230V

Nombre De La Marca:	ANS
Número De Modelo:	EVA03B
Cuota De Producción:	1
Detalles Del Embalaje:	15.7153.15 (adentro)
Condiciones De Pago:	L/C, T/T, Western Union

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

China.

Certificación:

Nombre del producto:

IP67 3KW Portable EV Charger

Tipo:

cargador portátil del ev

Corriente nominal::

Frecuencia nominal:

50Hz/60Hz

Temperatura de almacenamiento:

-30 ℃ a +50℃

Estrella:

EN 61851-1: 2017/EN 62196-2: 62752:2017 2017/EN

Color de cable:

Negro o arreglo para requisitos particulares

Protección:

Certificación:

Voltaje de entrada/salida:

AC110V/230V

Capacidad de la fuente:

100000pcs/mes

Resaltar:

IP67 portable EV charger

3kw 1-phase home EV charger

CE certified portable EV charger

Descripción de producto

IP67 3kw 1-Phase Portable Home Ev Charger AC110V/230V

Product Description

Safety is a top priority with the EVA03B portable EV charger. It integrates seven key protection mechanisms: over-voltage, under-voltage, overload, short circuit, leakage, over-temperature, and lightning protection. The built-in Type B RCD offers enhanced electrical safety, preventing electric shock hazards. With an IP87 rating, it operates reliably in harsh environments, from -30°C to 60°C, and up to 95% humidity. Its standby power consumption is below 0.5W, promoting energy efficiency. Whether used in rain or shine, the EVA03B delivers peace of mind for every EV owner.

Key Advantage

Adjustable current

Delay charging setting

LED Light and Touch Key

Built-in RCD type B

Specificaiton

Product Model EVA03B
Input/Output voltage	AC 110V/230V
Input frequency	50/60Hz
Max.output power	1 - Phase up to 3.7kW(@230V 16A)
Max.output current	16A for 1 - Phase
Standard	IEC 62752:2016/COR1:2019
Protection
Certificate	CE
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
OLED screen	Yes
RCD	Type B
Current adjustment	Yes
Delay charging adjustment	Yes
Ethernet/WIFI/4G/Bluetooth	No
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 60℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<0.5W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤2.1kg
Colour&Material	Black;Tempered Glass,PC

Features

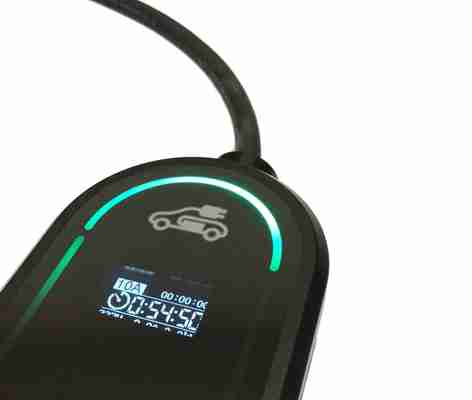

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

16A IP67 Portable EV Charger 3.7kW 110V/230V 0

16A IP67 Portable EV Charger 3.7kW 110V/230V 1

LED Indicators

16A IP67 Portable EV Charger 3.7kW 110V/230V 2

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

Packaging

Our Certification

Exhibition
16A IP67 Portable EV Charger 3.7kW 110V/230V 5

Visits from Various Countries (looking forward to your arrival)

16A IP67 Portable EV Charger 3.7kW 110V/230V 6
